減速電機主要技術參數 Reducer motor Technical Data
減速比 Max.Gearbr eaking torque | 最大額定力矩 Max.Running.to rque | 最大損壞扭力 Max.Gearbr eaking torque
| 效率 Gearing effic iency
| 級數 Number of stages

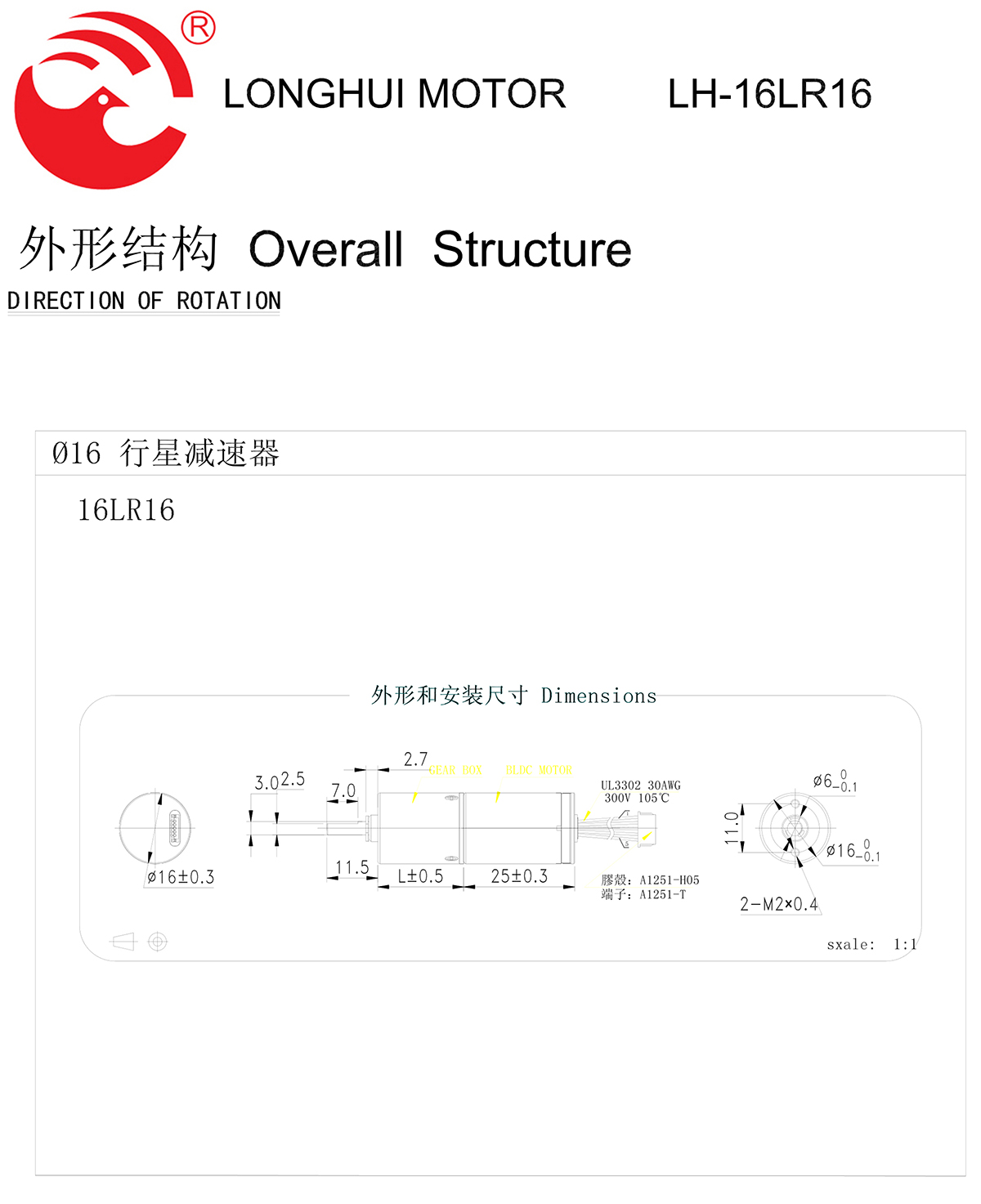

| 減速電機長度 Reducer motor length"L"mm
|
1/4, 1/5 | 0.3 kgf.cm
| 1.5 kgf.cm
| 80%
| 1 | 37.2 |
1/16, 1/19, 1/23
| 0.5 kgf.cm
| 2.0 kgf.cm
| 70%
| 2
| 40.8 |
1/64, 1/76, 1/90, 1/107
| 1.0 kgf.cm
| 3.5 kgf.cm
| 60%
| 3 | 44.4
|
1/256, 1/304, 1/361,1/428, 1/509, 1/688
| 3.0 kgf.cm | 9.5 kgf.cm | 50%
| 4 | 48.0
|
1/1715, 1/2036, 1/2418
| 4.0 kgf.cm | 12.5 kgf.cm
| 40%
| 5
| 51.6 |
馬達清單 Motor data
馬達型號 Motor type
| 額定電壓 額定電壓 (v) | 空載電流 No load current (mA)
| 空載轉速 No load speed (rpm) | 額定電流 Rated current (mA)
| 額定轉速 Rated speed (rpm)
| 額定扭力 Rated torque (gf.cm)
| 額定功率 Rated power (w) | 堵轉扭力 Stall torque (gf.cm) | 堵轉電流 Stall current (mA) | 重量 Weight (g)
|
BLDC-1625128000
| 12
| ≤80 | 11000
| ≤450
| 8500 | 30
| 2.5
| 120
| 1550 | 20.0 |
BLDC-16252412000
| 24 | ≤30
| 11000
| ≤255
| 8500
| 30
| 2.5 | 120 | 830 | 20.0 |
